Import a 3D model from Maya

  • Updated

Maya models can be imported into Shapespark through the FX format.

To import a Maya model to Shapespark follow the steps:

    1. Click to export the Maya model with File > Export All... or File > Export Selection... menu item

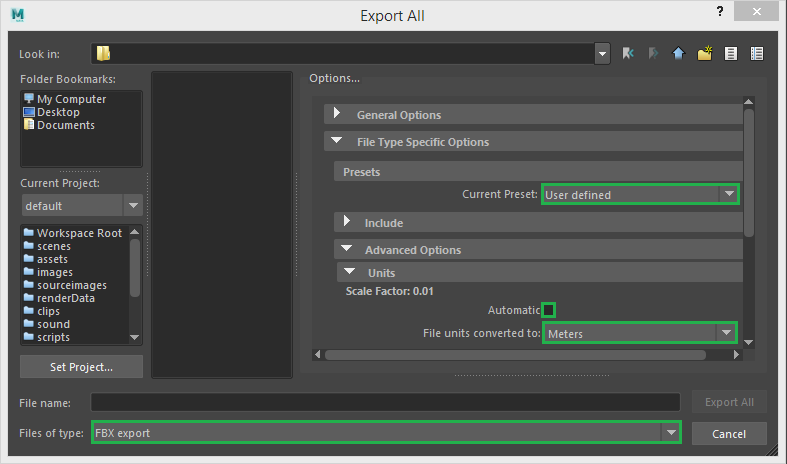

    2. Using the following export settings:

      Select FBX export in Files of type.

      Inside Options... > File Type Specific Options:

      • Select the Autodesk Media & Entertainment preset in Presets > Current preset.
      • Inside Advanced Options > Units, clear the Automatic checkbox and choose Meters in File units converted to.

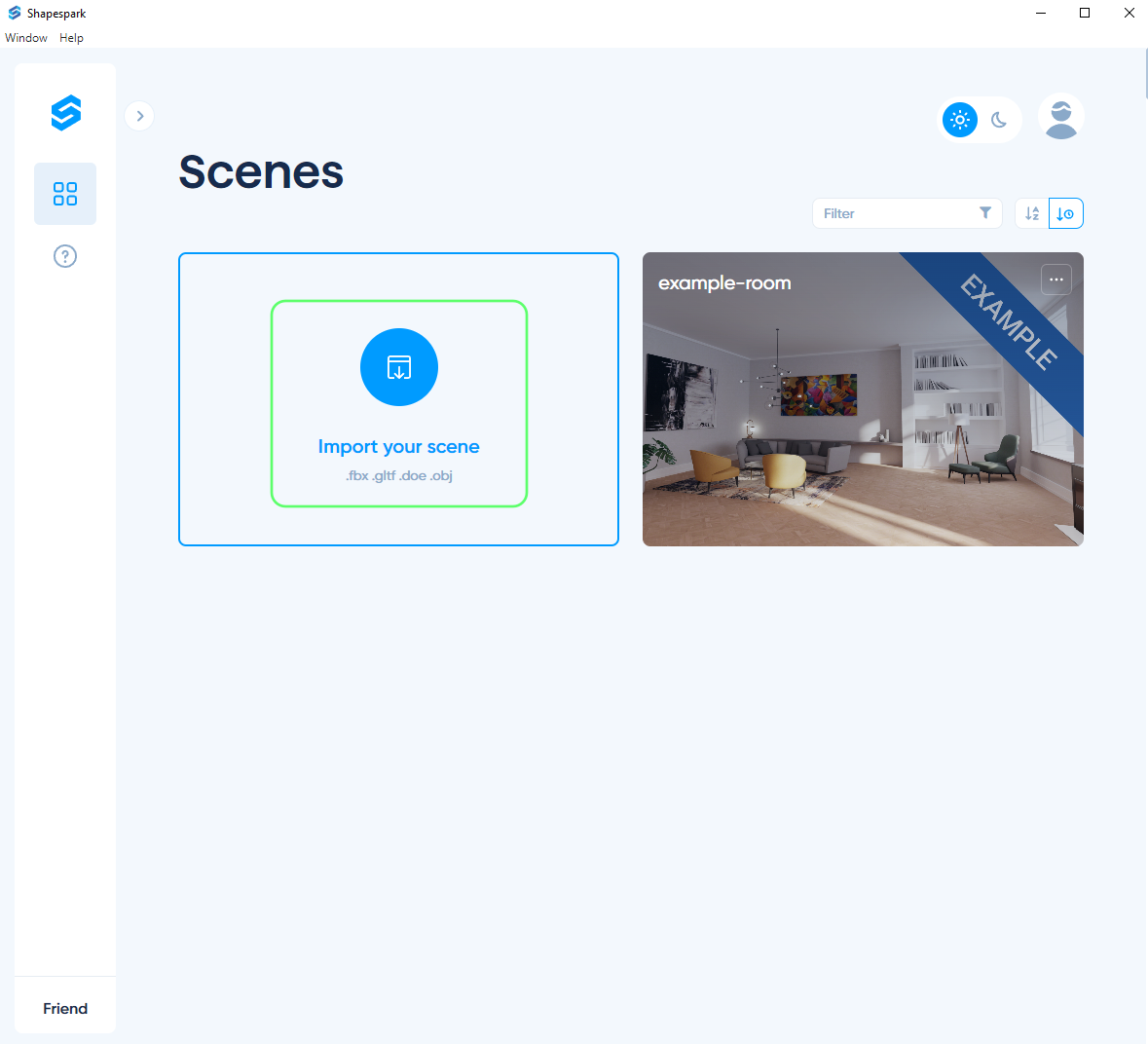

    3. Import the exported FBX file using the Import .fbx .dae .obj button in the main Shapespark window.


        • Use an Input scale of 1m.



❕  To update the Shapespark scene after it has been modified in Maya, export it again and use the Update button in the main Shapespark window.
